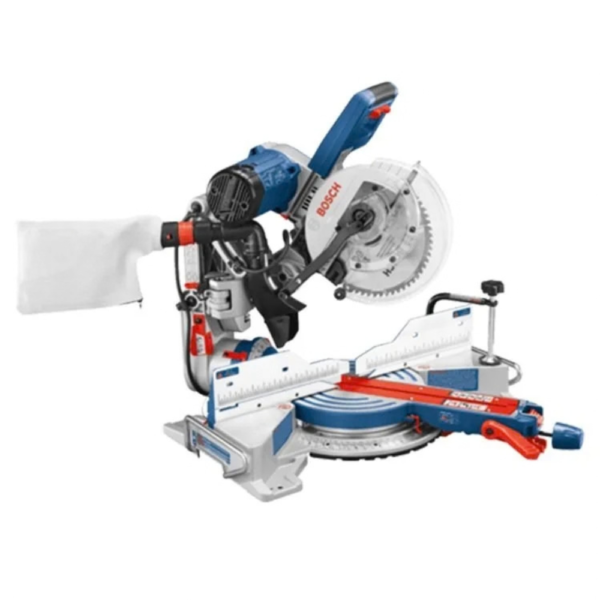

Bosch CM10GD 10″ Dual-Bevel Glide Miter Saw
Original price was: $624.00.$321.00Current price is: $321.00.
Buy Now takes you directly to checkout.
Shipping dates for backordered items will be confirmed separately.
Dates are estimates in Pacific Time, exclude holidays, and may vary by destination. Shipping details
Bosch CM10GD 10-Inch Dual-Bevel Glide Miter Saw
Precision Cutting, Powerful Performance & Compact Glide Technology
The Bosch CM10GD 10-Inch Dual-Bevel Glide Miter Saw delivers precise, controlled cutting across a wide range of miter and bevel angles. Its innovative Axial-Glide System provides smooth operation, enhanced alignment, and durable precision, while the articulated hinge-arm design reduces the saw’s front-to-back footprint by up to 10 inches compared with comparable sliding miter saws.
Powered by a 15-amp motor delivering up to 4,800 no-load RPM, the CM10GD provides the power needed for demanding cutting applications. Front-mounted bevel controls, adjustable miter detents, tall sliding fences, and easy-to-read scales make setup and angle adjustments convenient and accurate.
Key Features
Axial-Glide System
- Innovative Axial-Glide System provides smooth, controlled saw movement.
- Offers enhanced alignment and durable precision.
- Designed to provide more durable precision than traditional side-rail slide systems.
- Helps deliver consistent cutting performance throughout the life of the tool.
Compact Articulated Hinge Arms
- Articulated hinge arms reduce the saw’s front-to-back footprint.
- Requires up to 10 inches less front-to-back workspace than comparable sliding miter saws with similar capacities.
- Ideal for workshops and job sites where workspace is limited.
Powerful 15-Amp Motor
- 15-amp motor provides substantial cutting power.
- Delivers up to 4,800 no-load RPM for fast and controlled cutting performance.
Wide Cutting Capacities
The CM10GD is designed to handle a variety of dimensional lumber and molding applications.
- 12-inch horizontal cut capacity
- 5-1/2-inch vertical baseboard capacity against the fence
- 6-inch crown molding capacity nested against the fence
- 45-degree spring capacity for crown applications
Tall Sliding Fences
- Tall 4-1/4-inch sliding fences provide additional support.
- Make bevel setups easier.
- Increase crown and base molding capacity.
- Help support workpieces during precision cuts.
Dual-Bevel Adjustment
- Provides 47° bevel capacity to the left and right.
- Bevel detents at 0°, 33.9°, and 45° left/right simplify common angle setups.
- Front-mounted bevel lock lever and range selector allow convenient adjustments without reaching behind the saw.
Adjustable Miter Detents
Durable, adjustable miter detents provide convenient positioning at common cutting angles.
- 0°
- 15°
- 22.5°
- 31.6°
- 45°
- 60°
Push-Button Miter Detent Override
- Thumb-actuated control is conveniently positioned at the front of the saw.
- Allows easy adjustment between standard detent positions.
- Provides greater control for fine miter-angle adjustments.
Easy-to-Read Scales
- Large, uniform bevel scale makes angle settings easy to read.
- Stainless-steel miter scale provides durable visibility.
- Scales display degrees as well as roof-pitch angles for convenient cut setup.
Advanced Dust Collection
- Category-best 90% dust collection when optimized for cutting 2x material with a vacuum.
- Helps reduce airborne sawdust and maintain a cleaner work area when paired with a suitable vacuum system.
Ergonomic Ambidextrous Trigger Handle
- Ambidextrous trigger design accommodates comfortable operation from either hand.
- Soft-grip handle provides added comfort.
- Large, form-fitting ergonomic design is suited for extended use.
Specifications
| Specification | Details |
|---|---|
| Brand | Bosch |
| Model | CM10GD |
| Tool Type | Dual-Bevel Glide Miter Saw |
| Blade Size | 10 in. |
| Motor | 15 Amp |
| No-Load Speed | 4,800 RPM |
| Glide System | Axial-Glide System |
| Horizontal Cut Capacity | 12 in. |
| Vertical Baseboard Capacity | 5-1/2 in. Against Fence |
| Crown Cut Capacity | 6 in. Nested Against Fence |
| Fence Height | 4-1/4 in. |
| Bevel Capacity | 47° Left / 47° Right |
| Bevel Detents | 0°, 33.9°, 45° Left/Right |
| Miter Detents | 0°, 15°, 22.5°, 31.6°, 45°, 60° |
| Dust Collection | Up to 90% with Vacuum, Optimized for 2x Material |
| Handle | Ambidextrous Ergonomic Soft-Grip |
| Miter Override | Push-Button |
| Workspace Advantage | Up to 10 in. Less Front-to-Back Space vs. Comparable Slide Saws |
Cutting & Adjustment Performance
The Bosch CM10GD combines broad cutting capacity with precise angle adjustment. Dual-bevel capability allows the saw to tilt in either direction, while adjustable miter detents and the front-mounted override make it easier to establish both common and fine-tuned angles.
The front-access bevel controls eliminate the need to reach around the rear of the saw when making bevel adjustments, helping streamline setup and operation.
Ideal Applications
The Bosch CM10GD is well suited for:
- Professional woodworking
- Trim and finish carpentry
- Baseboard cutting
- Crown molding installation
- Dimensional lumber
- Framing and general construction
- Workshop and job-site cutting
- Precision miter and bevel applications
Design & Usability
The combination of the Axial-Glide System and articulated hinge arms provides smooth movement while minimizing the space required behind the saw. Tall sliding fences support larger molding and workpieces, while the ergonomic ambidextrous handle and front-access controls enhance everyday usability.
Why Choose the Bosch CM10GD?
- 10-inch dual-bevel glide miter saw
- 15-amp motor with 4,800 no-load RPM
- Innovative Axial-Glide System
- Up to 10 inches less front-to-back workspace
- 12-inch horizontal cutting capacity
- 47° left/right bevel capacity
- Adjustable miter detents
- Push-button miter detent override
- Tall 4-1/4-inch sliding fences
- Large degree and roof-pitch scales
- Up to 90% dust collection with vacuum
- Ergonomic ambidextrous soft-grip handle
