Specialized Turbo Vado SL E-Bike – 240W, 320Wh, 11-Speed SRAM NX, 28 MPH

Lightweight, Long-Range Electric Bike for Commuting, Fitness & Everyday Riding

The Specialized Turbo Vado SL is a lightweight electric bike designed to combine natural handling with practical electric assistance for urban commuting, fitness rides, and longer-distance adventures. Built around Specialized’s Turbo SL lightweight motor system, the Vado SL delivers responsive assistance while maintaining a riding experience that feels nimble and easy to manage.

Weighing approximately 34 lb 2.7 oz (15.5 kg) in size Medium, the Vado SL is designed to be significantly easier to lift, carry, transport, and store than a typical full-power e-bike. Its premium E5 aluminum frame features clean internal cable routing, integrated battery placement, and mounts for fenders and a front rack.

The bike is equipped with a 320Wh fully integrated downtube battery, with compatibility for an optional Range Extender. Under specified Eco-mode conditions, Specialized lists up to 80 miles (130 km) of range, or up to 120 miles (200 km) with the Range Extender.

Key Features

Lightweight Turbo SL Motor

The Specialized SL 1.1 custom lightweight motor is designed to provide electric assistance without sacrificing the nimble feel of a lightweight bicycle.

• Specialized SL 1.1 custom lightweight motor
• Peak output: 240W
• Maximum torque: 35 Nm
• Up to 180% rider amplification
• Assistance up to 28 mph where permitted
• Lightweight, integrated motor design

Long-Range Integrated Battery

The fully integrated downtube battery provides 320Wh of capacity while maintaining a clean frame profile.

• Specialized SL1-320 battery
• 320Wh capacity
• Fully integrated downtube design
• Rechargeable lithium-ion system
• Compatible with optional Range Extender
• Up to 80 miles / 130 km claimed Eco-mode range
• Up to 120 miles / 200 km claimed Eco-mode range with Range Extender

MasterMind Turbo Control Unit

The Vado SL’s MasterMind Turbo Control Unit provides at-a-glance ride information and system controls.

• 10-LED state-of-charge display
• 3-LED ride-mode display
• ANT+ connectivity
• Bluetooth connectivity
• Handlebar remote
• Designed for easy monitoring while riding

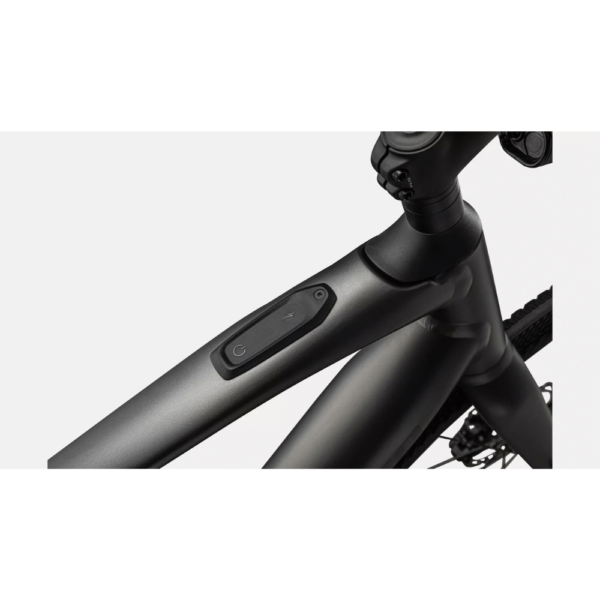

Premium E5 Aluminum Frame

The lightweight E5 aluminum frame is engineered around everyday usability and efficient urban riding.

• Premium E5 aluminum construction
• Fully integrated downtube battery
• Internal cable routing
• Smooth-welded construction
• Fender mounts
• Front rack mounts
• Reflective graphics
• Bottom-bracket motor mount

Hydraulic Disc Brakes

Tektro hydraulic disc brakes provide strong and controlled stopping performance.

• Tektro HD-R290 hydraulic disc brakes
• 160mm front rotor
• 160mm rear rotor
• Designed for confident braking and speed control

Fast-Rolling Pathfinder Tires

Specialized Pathfinder Sport tires are designed to provide efficient rolling on pavement while retaining grip for mixed-surface riding.

• Specialized Pathfinder Sport
• 700x38c front tire
• 700x38c rear tire
• Suitable for paved and mixed-surface riding
• 40mm PV inner tubes

11-Speed SRAM NX Drivetrain

The SRAM NX 11-speed drivetrain provides a wide range of gearing for commuting, fitness, and longer rides.

• SRAM NX 11-speed shift lever
• SRAM NX 11-speed rear derailleur
• SUNRACE CSMS7 11-42T cassette
• KMC e11S 11-speed chain
• Praxis forged alloy M30 crankset
• Praxis 44T chainring

Integrated Lighting

Bright integrated lighting improves visibility during lower-light riding conditions.

• Lezyne Ebike Hecto STVZO E65 headlight
• 210 lumens
• 12V headlight system
• Integrated saddle-mounted Specialized LED taillight
• 12V taillight
• Simple bell included

Commuter-Ready Equipment

The Vado SL comes equipped with practical components for everyday riding.

• Specialized Commuter pedals
• Grip tape and reflectors on pedals
• Fender mounting capability
• Front rack mounting capability
• Reflective frame graphics
• Integrated lighting

Specifications

Motor & Electrical System

Specification	Details
Motor	Specialized SL 1.1 Custom Lightweight Motor
Peak Motor Power	240W
Torque	35 Nm
Rider Amplification	Up to 180%
Maximum Assist Speed	Up to 28 mph, where permitted
System	48V Specialized SL System
Wiring	Custom Specialized wiring harness
Charge Port	Integrated
Charger	Custom 48V system charger

Battery & Range

Specification	Details
Battery	Specialized SL1-320
Capacity	320Wh
Battery Position	Fully integrated downtube
Battery Type	Integrated rechargeable lithium-ion
Range Extender	Compatible
Claimed Range	Up to 80 miles / 130 km in Eco mode
Extended Claimed Range	Up to 120 miles / 200 km in Eco mode with Range Extender
Range Duration	Up to 6 hours Eco mode / up to 9 hours with Range Extender

Frame & Fork

Specification	Details
Frame	E5 Aluminum
Frame Construction	Smooth Welds
Cable Routing	Internal
Battery Integration	Fully integrated downtube
Motor Mount	Bottom bracket
Fender Mounts	Yes
Front Rack Mounts	Yes
Fork	Rigid full-aluminum disc fork
Front Axle	Boost 12x110mm
Front Rack Compatible	Yes
Reflective Graphics	Yes

Brakes & Drivetrain

Component	Details
Front Brake	Tektro HD-R290 Hydraulic Disc
Rear Brake	Tektro HD-R290 Hydraulic Disc
Front Rotor	160mm
Rear Rotor	160mm
Shift Levers	SRAM NX, 11-speed
Rear Derailleur	SRAM NX, 11-speed
Cassette	SUNRACE CSMS7, 11-42T
Chain	KMC e11S, 11-speed
Crankset	Praxis Forged Alloy M30
Chainring	Praxis 44T, 104BCD

Wheels & Tires

Component	Details
Rim	700C Disc
Rim Depth	22mm
Internal Rim Width	21mm
Front Hub	Specialized Alloy Disc, 12x110mm, Center Lock
Rear Hub	Specialized Alloy Disc, 12x148mm, Center Lock
Front Spokes	DT Swiss Industry
Front Tire	Specialized Pathfinder Sport, 700x38c
Rear Tire	Specialized Pathfinder Sport, 700x38c
Inner Tubes	Standard 40mm PV, 700×32-50

Cockpit & Contact Points

Component	Details
Stem	Specialized Stealth Stem, Alloy
Stem Angle	14 degrees
Stem Diameter	31.8mm
Handlebar	Specialized Alloy
Handlebar Backsweep	9 degrees
Handlebar Rise	15mm
Handlebar Diameter	31.8mm
Grips	Specialized Body Geometry Contour, Lock-On
Saddle	Bridge Sport
Saddle Rails	Steel
Saddle Width	155mm
Seat Post	Specialized Alloy, Dual-Bolt
Seat Post Offset	25mm
Seat Post Diameter	27.2mm

Accessories & Lighting

Component	Details
Pedals	Specialized Commuter with Grip Tape & Reflectors
Headlight	Lezyne Ebike Hecto STVZO E65
Headlight Output	210 Lumens
Headlight Voltage	12V
Taillight	Specialized Integrated Saddle-Mount LED
Taillight Voltage	12V
Bell	Simple Bell
Display/Control	MasterMind Turbo Control Unit

Weight

Specification	Details
Weight	15.5 kg / 34 lb 2.7 oz
Listed Weight Size	Medium

Ideal Applications

The Specialized Turbo Vado SL is well suited for:

• Daily urban commuting
• Fitness and training rides
• Paved-road cycling
• Mixed-surface recreation
• Longer-distance rides
• Urban errands and transportation
• Riders who need a lighter e-bike for carrying or transporting
• Bike-rack and public-transportation use
• Riders seeking a more natural-feeling electric bicycle

Lightweight Design & Everyday Practicality

One of the defining characteristics of the Vado SL is its approximately 34.2 lb weight in size Medium. The lightweight design makes the bike easier to lift onto a car rack, carry upstairs, maneuver through city streets, and store when not in use.

The integrated battery and internal cable routing also give the bike a clean appearance, while fender and front-rack mounts make it adaptable to practical commuting setups.

Comfort & Ride Control

The Vado SL is designed around a riding position and handling characteristics intended to provide comfort, control, and confidence. Its 700x38c Pathfinder Sport tires provide a balance between efficient pavement rolling and grip on mixed surfaces.

Hydraulic disc brakes provide controlled stopping performance, while the rigid aluminum fork keeps the front end lightweight and compatible with the bike’s front-rack configuration.

Turbo SL Technology

The Turbo SL system integrates the motor, battery, controls, and connected functions into a lightweight e-bike platform. The system is designed to provide a natural riding feel while adding electric assistance, ride information, connectivity, and anti-theft-related functions.

The MasterMind Turbo Control Unit provides battery and ride-mode information, while ANT+ and Bluetooth connectivity allow interaction with compatible devices and systems.

Rider Safety & Guidance

• Always wear an appropriate bicycle helmet and follow applicable local e-bike regulations.
• Verify the legally permitted assist-speed classification in your riding area before using higher assistance settings.
• Inspect the hydraulic brakes, tires, wheels, drivetrain, battery connection, and controls before each ride.
• Adjust speed and braking distance for traffic, weather, terrain, and riding conditions.
• Use the integrated lighting when visibility is reduced.
• Keep the battery and electrical system within their specified operating conditions.
• Follow Specialized’s recommended charging, storage, and battery-care procedures.
• Confirm that any rack or accessory is properly installed before carrying equipment or transporting the bike.

Performance & Range Note

The stated 80-mile (130 km) range is a claimed maximum under Eco-mode conditions. With an optional Range Extender, the stated maximum increases to 120 miles (200 km) or approximately 9 hours in Eco mode. Actual range varies according to rider weight, terrain, speed, temperature, wind, assist level, tire pressure, and other riding conditions.

The stated 28 mph assistance capability may vary by region and local requirements. Higher permitted assistance speeds can also reduce real-world range.

Why Choose the Specialized Turbo Vado SL?

The Specialized Turbo Vado SL combines the practicality of an everyday commuter with the lightweight handling of a performance-oriented bicycle. Its SL 1.1 motor, 320Wh integrated battery, optional Range Extender compatibility, 11-speed SRAM NX drivetrain, hydraulic disc brakes, Pathfinder Sport tires, integrated lighting, and MasterMind Turbo Control Unit create a versatile platform for riders who want electric assistance without the bulk of a conventional full-power e-bike.
