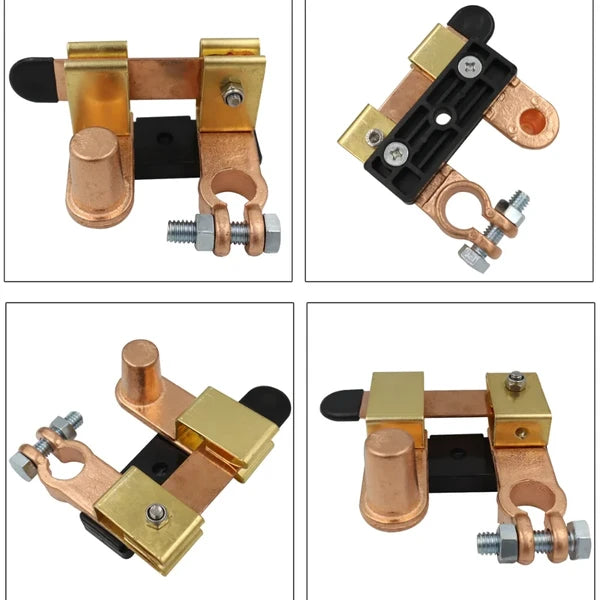

12V 24V 250A Battery Disconnect Switch for Car RV Boat and Truck

12V 24V 250A Battery Disconnect Switch for Car RV Boat and Truck

12V 24V 250A Battery Disconnect Switch for Car RV Boat and Truck

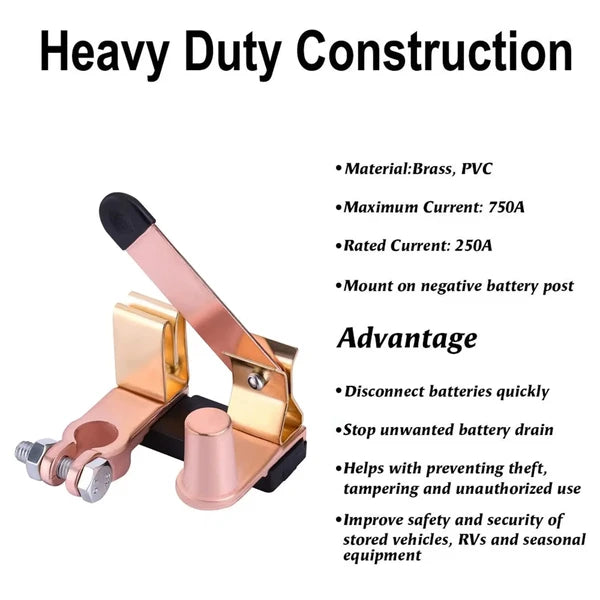

• HEAVY-DUTY DISCONNECT SWITCH:This reliable battery kill switch employs structural steel copper plated to provide suitable isolation and preservation for your vehicle s battery

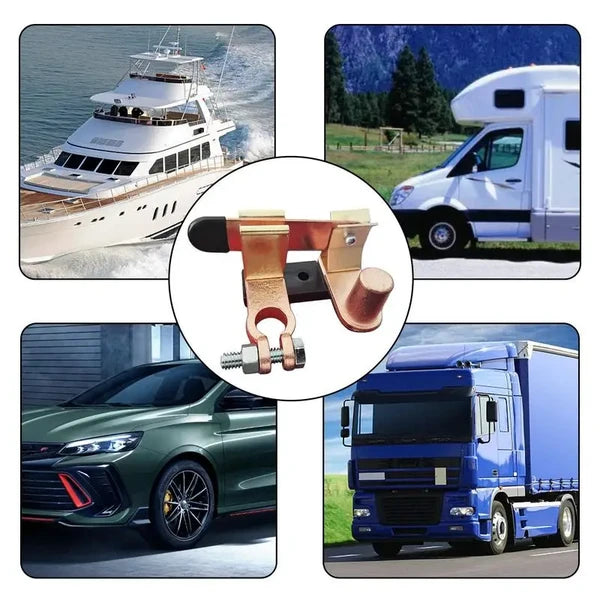

• HIGH VERSATILITY:Able to handle 12-24V of 250A continuous and 750A momentary at DC 12V, our master battery cutoff switch works with top post batteries for a wide range of vehicles including most cars, boats, trucks, RVs, and even jet skis

• EASY TO INSTALL & USE:Assemble the battery shut off switch to the negative cable. Turns power on and off by just lifting the lever up or down, on/off 2 position

• NO MORE DRAINED BATTERY:Batteries that are empty and not charged for a long time will shorten the life causing you to replace it. This battery cutoff blade type switch allows you to eliminate any unwanted parasitic power draw from the battery

• USER-FRIENDLY DESIGN:This shutoff switch easily adjusts to fit snugly around cathode terminals 0.59-0.66 in. (15-17 mm) in diameter; the plastic coated switch quickly disconnects and reconnects your electrical system

Specifications:

• Color Copper
• Material: Brass + Copper + PVC
• Operation: ON / OFF
• Rated Current Continuous: 250A DC
• Rated Current Intermittent: 400A DC
• Cranking Max Current: 750A DC
• Voltage: 12 - 24
• Fitment: Universal
• Contact Material: Copper

Features & Tips

EASY TO INSTALL

1. Disconnect the cable connection on the battery with the negative side first. Make sure the negative cable is always disconnected, then the positive cable. Install the battery knife disconnect switch on the negative battery terminal. (For safety, with the lever raised or disconnected.)
2. Reconnect the battery cable on the positive side, then connect the negative battery cable to the opposite end. (For safety, with the lever raised or disconnected.)
3. Checking if there is power when the lever is closed.

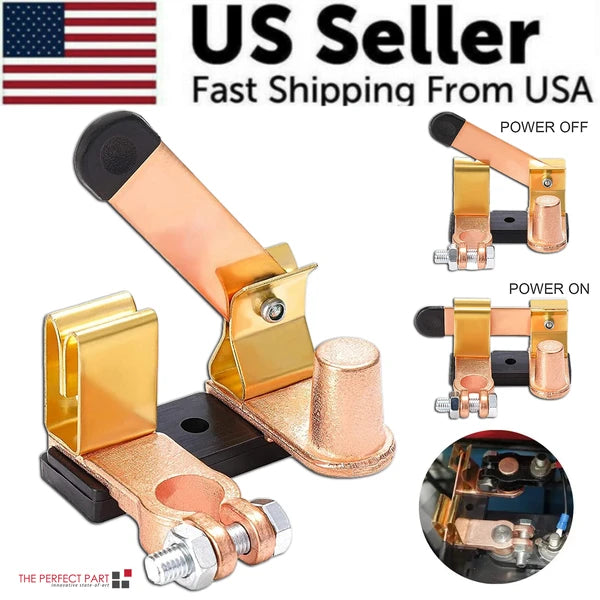

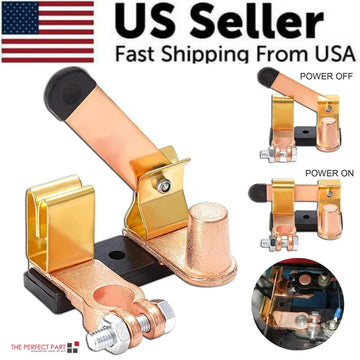

POWER ON / OFF

• Just lift the lever to safely disconnect the electrical system and prevent drawing power from the battery. Put it down to reopen the connection.

• NOTE: 1. Never connect the battery disconnect switches to the positive terminal of your battery. 2. Ensure the key is removed from the ignition and all lights and accessories are turned off. 3. Wear safety equipment and remove any items or accessories that may contact the battery or switch.

This reliable battery kill switch employs structural steel copper plated to provide suitable isolation and preservation for your vehicle s battery

Able to handle 12-24V of 250A continuous and 750A momentary at DC 12V, our master battery cutoff switch works with top post batteries for a wide range of vehicles including most cars, boats, trucks, RVs, and even jet skis

Assemble the battery shut off switch to the negative cable. Turns power on and off by just lifting the lever up or down, on/off 2 position

This shutoff switch easily adjusts to fit snugly around cathode terminals 0.59-0.66 in. (15-17 mm) in diameter; the plastic coated switch quickly disconnects and reconnects your electrical system
